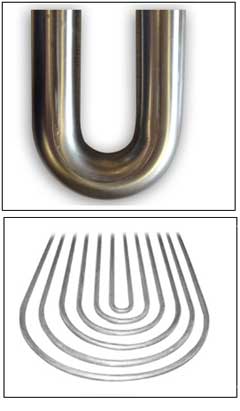

U Tubes

Tubes Tech produces an exclusive range of Copper & Copper Alloys “U” Tubes for Condensers, Boilers and heat exchanger applications. These U tubes are manufactured according to ASTM B 395, other common heat exchanger standards and grades and the technical specifications given by the Customer.

All the U Tubes are subjected to Hydrostatic or Pneumatic tests at the recommended pressure as per the Customer’s requirement. The U tubes can be heat treated on specific request of the Customer. The U tubes are internally cleaned and capped at both ends to avoid contamination.

Dimensional Range
1. Outer Diameter – 6 mm to 54 mm
2. Bending Radius (Minimum) – 1.5 X Tube Diameter
3. Bending Radius (Maximum) – 600 mm
4. Available in lengths up to 12 mtrs.
5. Tight radius and large radius bends may also be fabricated for specific requirements.
6. Manufactured as per ASTM, TEMA and all other common heat exchanger specifications and grades.

End Applications: Heat Exchangers, Chillers
